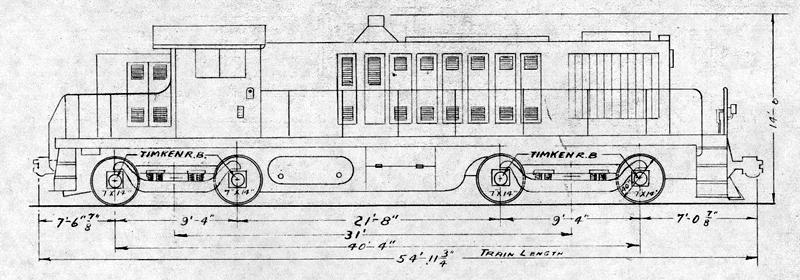

No. 1000 & 1001
-Specifications-
| Built By |
American Loco. Co.1944 |
| Type | Diesel Electric - 1000 H.P. |
| Idling Speed | 270 R.P.M. |
| Weight in Working Order | 244,800 LBS. |
| Cylinders | Number Six |
| Cylinders Dia. & Stroke | 12 1/2" x 13" |
| Dia. of Drivers | 40" |
| Tractive Power - Starting | 72,000 LBS. |
| Tractive Power - 10 MPH | 30,000 LBS. |
| Tractive Power - 30 MPH | 10, 750 LBS. |
| Maximum Width Overall | 10'-0" |
| Fuel | Standard Diesel |
| Fuel Oil Tank | 800 Gal. Capy. |
| Lubricating Oil | 80 Gal. Capy. |
| Engine Cooling System | 240 Gal. Capy. |
| Sand | 27 Cu. Ft. |
| Boiler Water Tank | 800 Gal. Capy. |
| Wheels | Steel Tired |
| Journal Bearings | Timken |
| Brake Cylinders | (4) 9" x 8" Each Truck |
| Air Brake Schedule | EL-14 |
| 2 - 250 H.P. Motors each Truck | |
| Air Compressor | 2 Stage 228 Cu. Ft. Per Min |
| Maximum at Full Eng Speed | 83 Cu. Ft. Per Min at Eng. Idling Speed |
| Heater | Vapor Car Heating Co, Type CFK-4160-2B |
| Capy. | 1600 LBS. Per Hour |
