No. 114
Brill Gas-Electric Car
-Specifications-
-Specifications-
| Purchased from (new equipment) |
J. G. Brill Co. |
| Placed in Service | 1927 |
| Estimated Life | |
| Weight | 92100# |
| Seating Capacity | 26 |
| Baggage Compartment | 25'-2" long |
| Speed Max. | 40 Miles per hr. - Level Track |
| Power | 6 Cyl. 4 Cycle, 250 H.P. Gas Engine, direct connected to a Shunt Wound, self Ventilated, Railway Type D.C. Generator. Front Truck equipped with Twp Heavy Duty Motors. |
| Wheels | 33" dia. |
| Journals | 5" x 9" Front Truck - 4 1/4" x 8" Rear Truck |

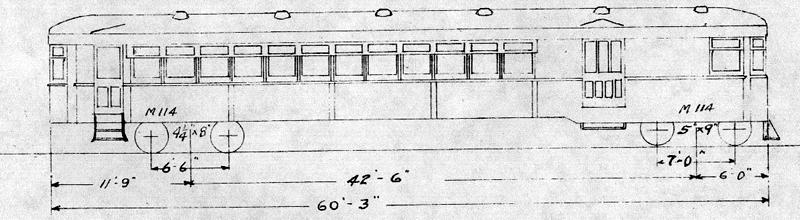

| General Dimensions | |
| Train Length | 61'-10" |
| Max. Width | 10'-0" |
| Max. Height | 12'-6" |
