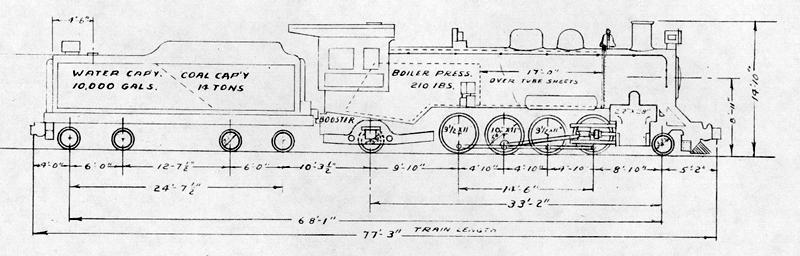

No. 701, 702, 703

-Specifications-

Built By	Baldwin Loco. Works
Year Built	1928     *1927
Type	Mikado
Weight on Drivers W.O.	175,680 LBS.     *172,360 LBS.
Weight on Front Truck W.O	23,130 LBS.
Weight on Back truck W.O.	45,310 LBS.
Total Weight of Engine W.O.	244,120 LBS.     *244,400 LBS.
Total Weight of Tender Loaded	197,280 LBS.
Total Weight of Eng. & Ten. Loaded	441,400 LBS.     *441,680#
Cylinders	22" x 28"
Dia. of Drivers	54"
Tractive Power (85% Boiler Press.)	44,800 LBS.     *42,600 LBS.
Factor of Adhesion	5.44
Maximum Width Overall	10'-5"
Fuel	Bituminous Coal
Brick Arch	American Security
Boiler Pressure	210 LBS.     *200 LBS.
Length of Firebox Inside	115 1/8"
Width of Firebox Inside	72 1/4"
Grate Area	57.7 Sq. ft.
Size of Boiler Tubes	2" x 17'-0"
Number of Tubes	193
Size of Superheater Flues	5 3/8" x 17'-0"
Number of Superheater Flues	32
Total Heating Surface	2718 Sq. Ft.
Superheater	621 Sq. Ft.
Superheater	Schmidt Type "A"
Valve Gear	Baker
Power Reverse Gear	Baldwin
Air Pump	One 8 1/2 Cross Compound
Arch Tubes	4
Stoker	Simplex Type "B-K"
Low Water Alarm	Barco Type "F-3A"
* Denotes specifications for 701 & 702 Locomotives
