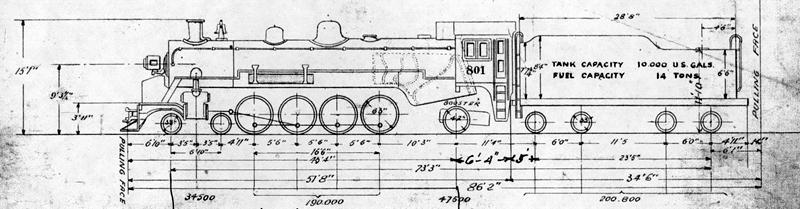

No. 801
-Specifications-
Builder Baldwin Loc. Co.
Year Built 1932
Type Mountain 4-8-2
Cylinders 22" x 30"
Diameter of Drivers 63"
Weight on Drivers 190000 LB.
Weight on Front Truck 34500 LB.
Weight on Rear Truck 47500 LB.
Total Weight on Engine 27200 LB.
Weight of Tender Loaded 200800 LB.
Weight of Engine & Tender Loaded 472800 LB.
Tractive Power of Engine 43100 LB. (85% Working Pressure)
Tractive Power of Booster 11800 LB.
Valve Gear Baker
Power Reverse Gear Bargo
Driving Wheel Base 16'-6"
Total Engine Wheel Base 73'-3"
Driving Journal Main 10" x 11" others 9 1/2" x 11"
Maximum Width of Engine & Tender 10'-5"
Size of Tender Axles 6" x 11"
Size of Front Engine Truck Axles 6" x 11"
Size of Rear Engine Truck Axles 8" x 14"
Train Length (Tender to Pilot Coupler) 86'-2"
Boiler Working Pressure 220 lbs.
Heating Surface Syphons 84 Sq. Ft.
Combustion Chamber Surface 64 Sq. Ft.
Fire Box Surface 184 Sq. Ft.
Tubes surface 785 Flues 1850 - Total 2967 Sq. Ft.
Fire Box Length 115 1/8"
Fire Box Width 78"
Length of Combustion Chamber 40"
No. of Thermic Syphons 3
No. of 2" Tubes 192
No. of 5 3/8" Tubes 32
Length over Tube Sheets 18'-6"
Type of Superheater Schmidt "A"
Type of Low Water Alarm "Cleveland"
Type of Stoker "Simplex B-K"
Type of Mechanical Lubricators "Nathan"
Type of Flange Lubricators "Chicago"
Make Type of Injectors 2 Edna Type M.N-10
